Ceramic Spray Spiral Nozzle

Ceramicspray spiral nozzle

1、Brief

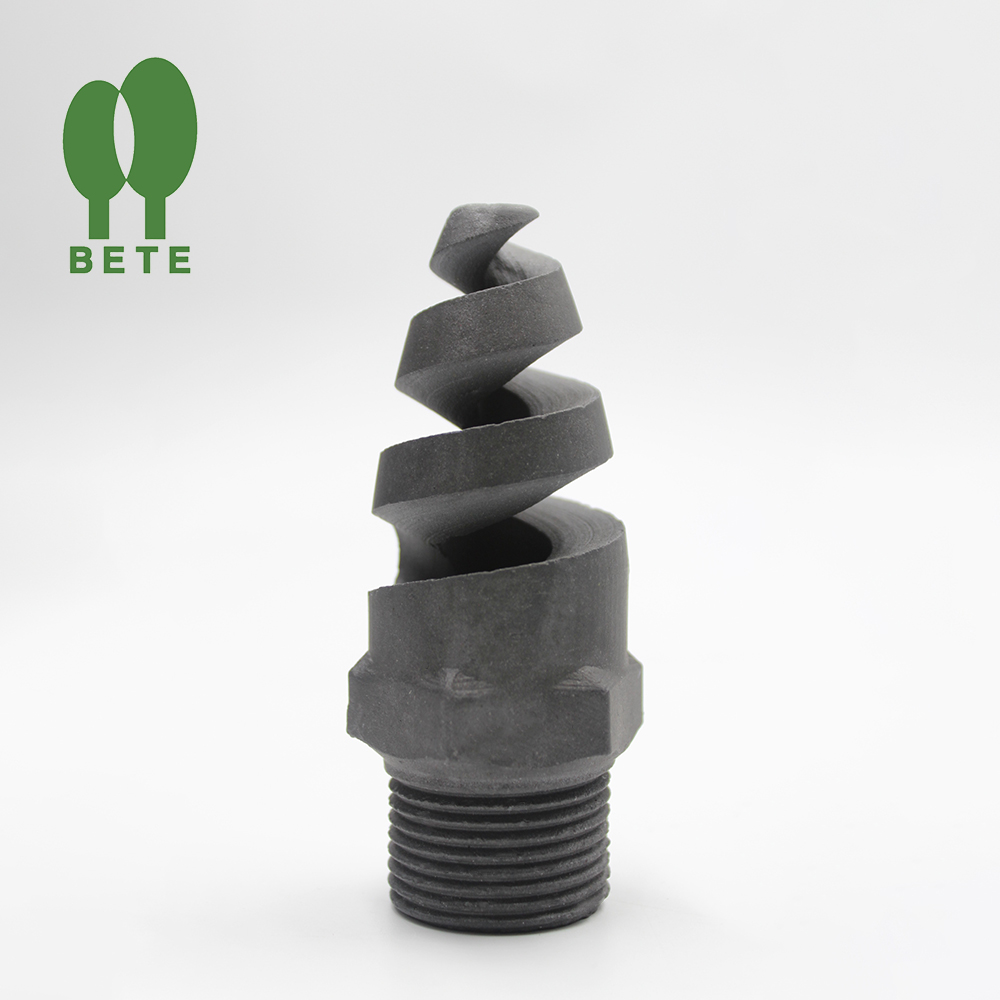

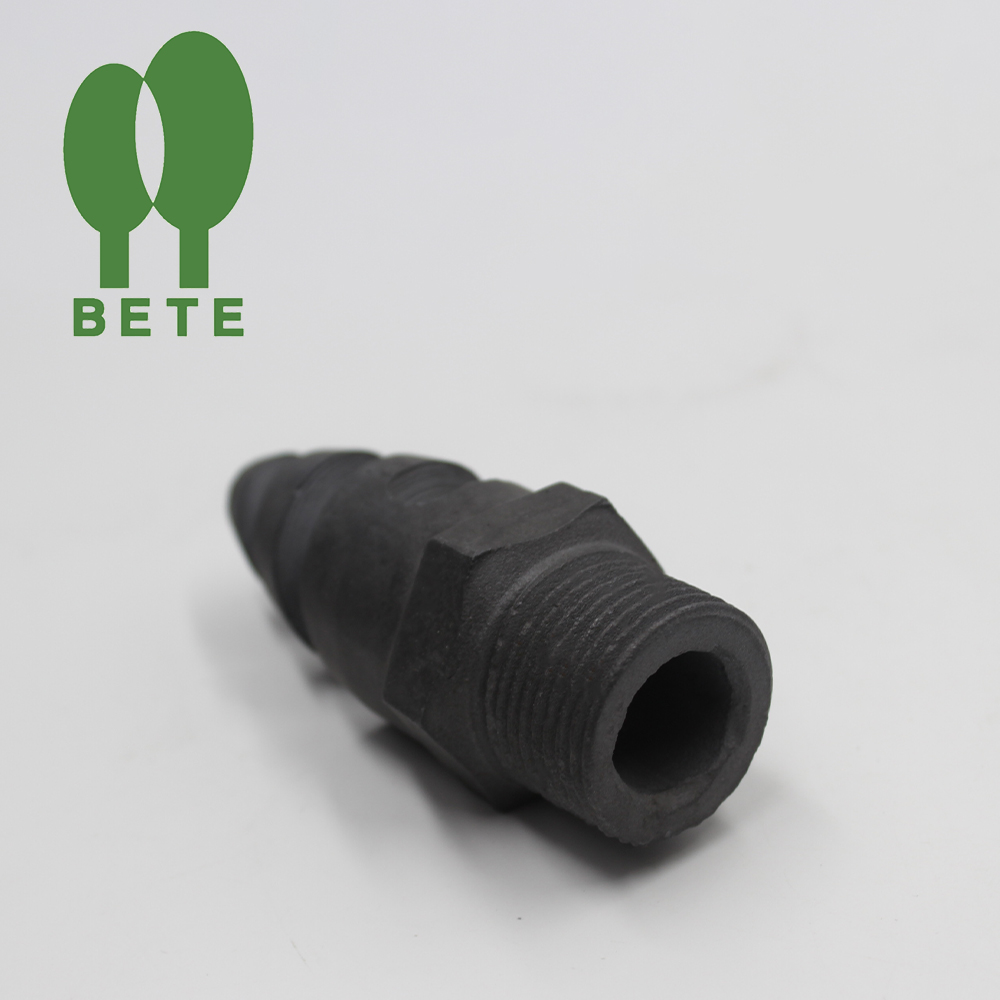

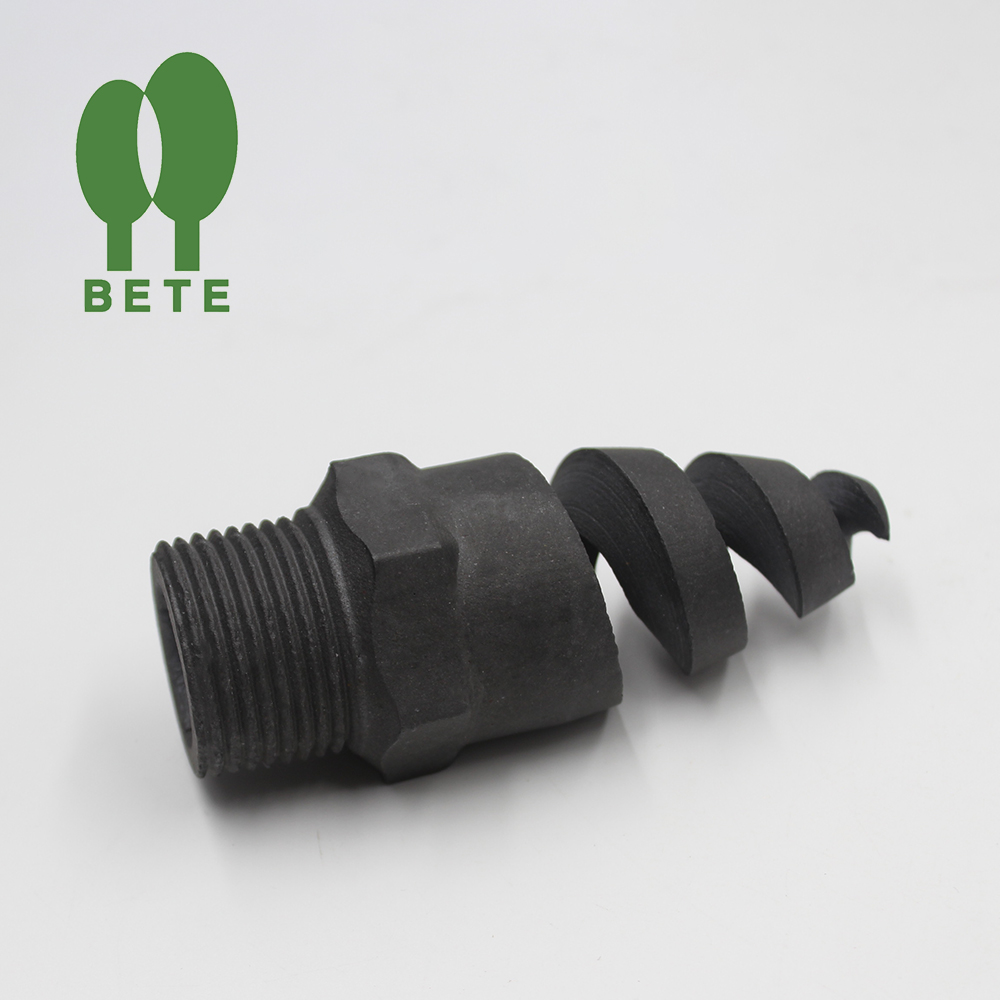

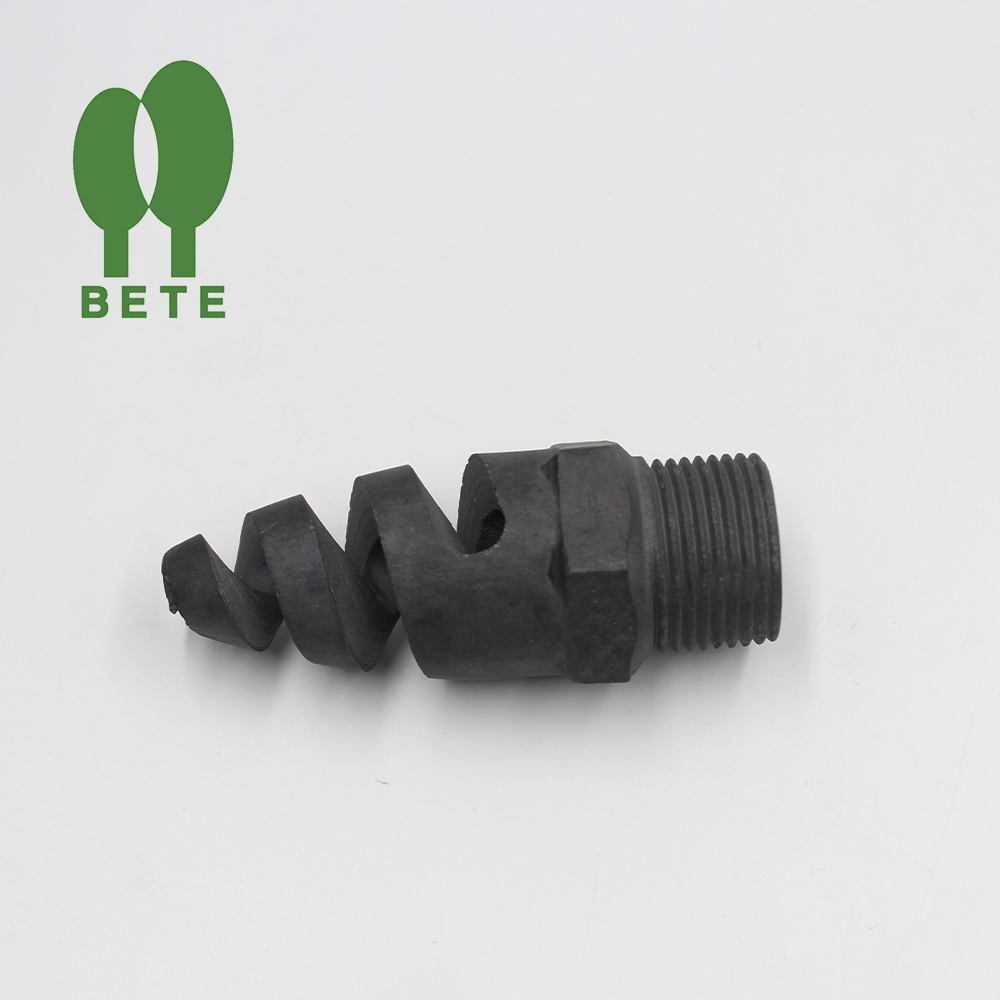

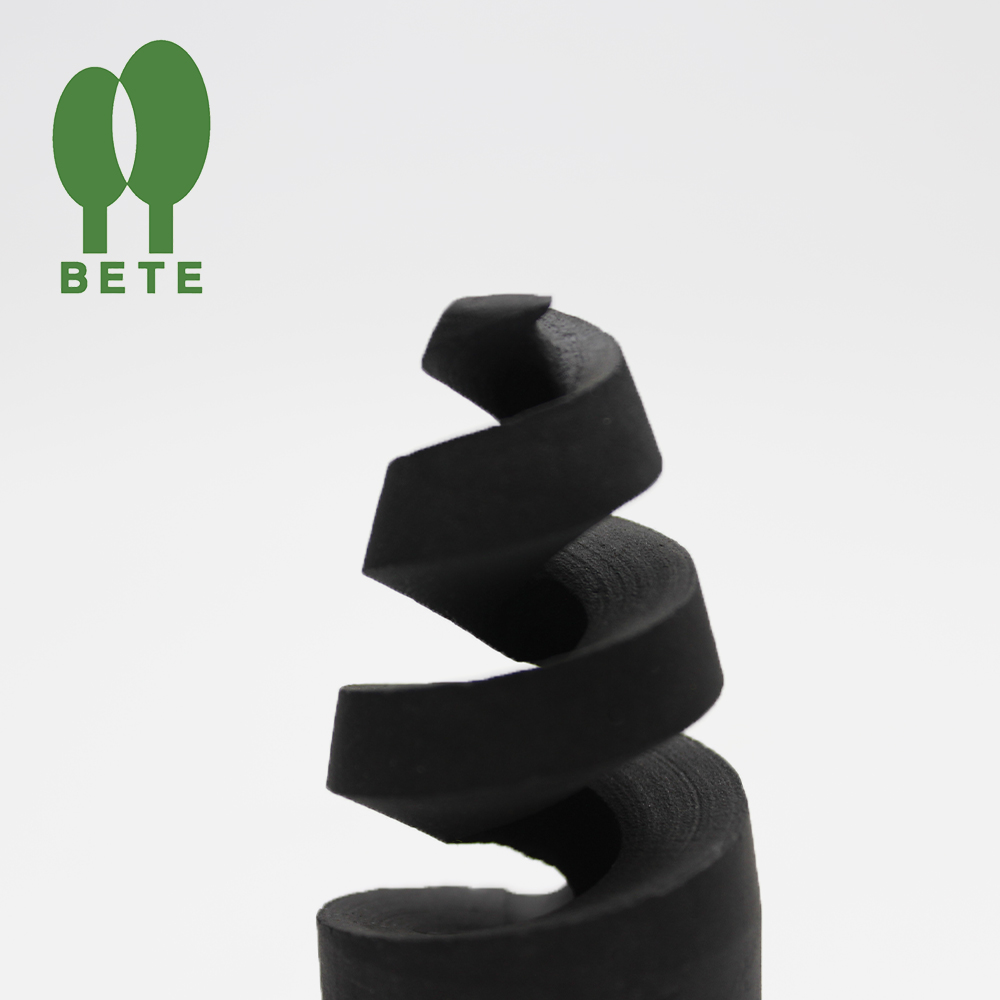

This spiral spray nozzle is integrally sintered from high-performance reaction bonded silicon carbide (RBSiC) ceramic. Different from traditional swirling nozzles with inner vanes, it adopts a special vane-free spiral through-flow channel design. When pressurized fluid flows through the spiral surface, it is sheared and broken to form even hollow cone atomization spray.

Benefiting from silicon carbide’s excellent chemical inertness and mechanical strength, the nozzle overcomes common defects of metal & plastic nozzles such as clogging, corrosion, abrasive wear and orifice enlargement. It maintains stable atomization effect and spraying efficiency in long-term harsh corrosive working conditions, serving as key consumable for industrial flue gas purification and liquid spraying systems.

2、Feature

Perfect Anti-clogging Structure

Ultra Wear & Corrosion Resistance

High Temperature & Thermal Shock Resistance

Integrated Thread Design for Easy Installation & Maintenance-free

3、Application

Flue gas desulfurization (FGD) lime slurry spraying for thermal power plants and steel mills

Acid-base waste gas neutralization & scrubbing in chemical and pharmaceutical factories

High-temperature exhaust cooling and dust removal for waste incineration & hazardous waste disposal plants

Chemical reagent dosing and deodorization spraying for municipal sewage treatment plants

Dust suppression for mines & building material workshops, cooling & humidification for industrial cooling towers

4、Characteristic attributes

Spray Pattern: Hollow Cone

Available Spray Angle: 60°,90°,120°,150°,170°

Chemical Resistance: Resistant to most strong acids & alkalis like sulfuric acid, hydrochloric acid, caustic soda

Craft: One-piece high-temperature sintering, no bonding seam

Applicable Medium: Lime slurry, acid/alkali waste liquid, sewage, particle-containing industrial fluid
