Ceramic Welding Backing

Ceramic welding backings

1、Brief

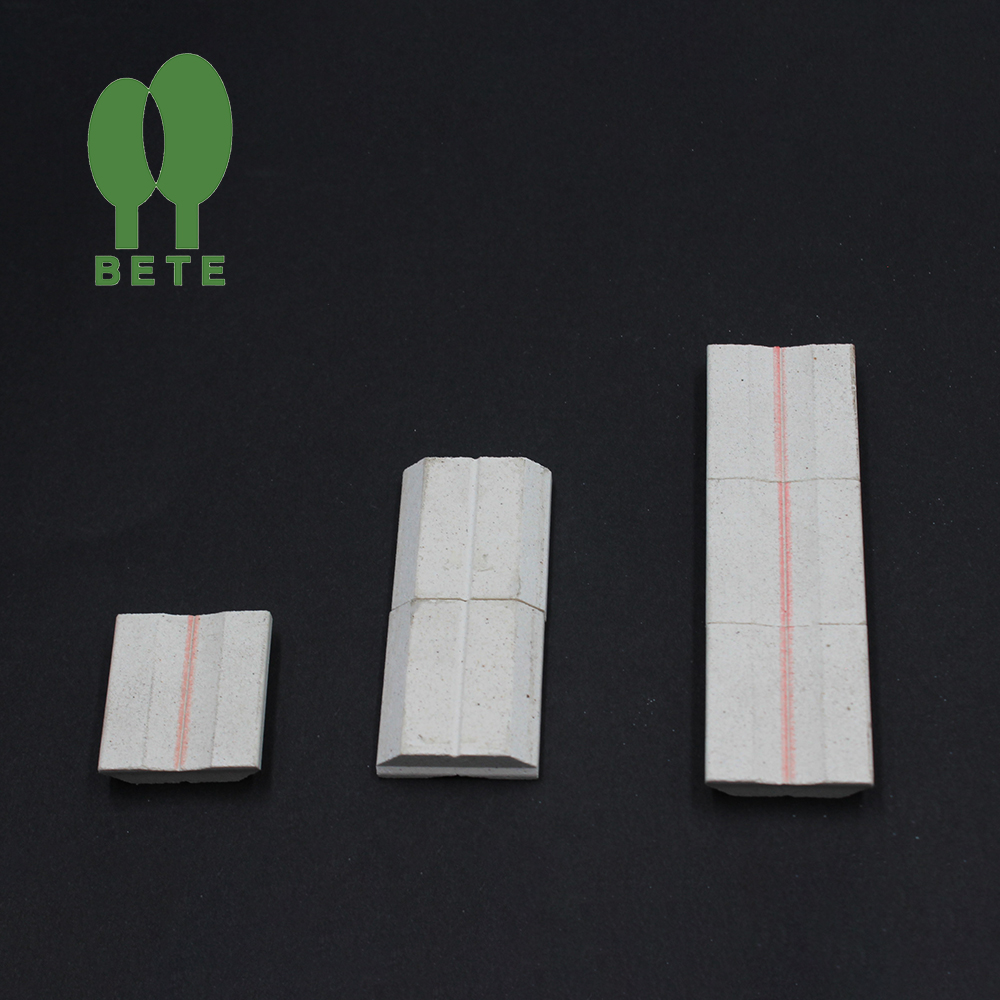

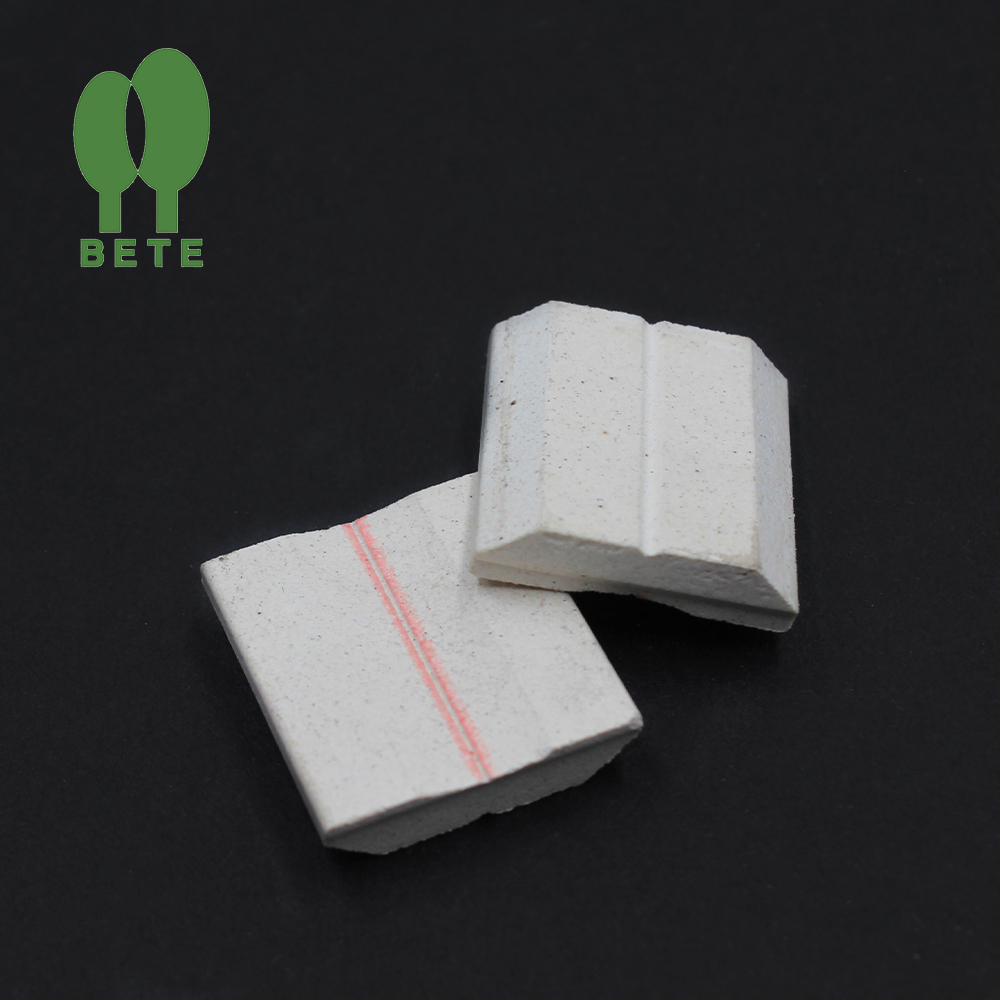

Our ceramic welding backing strips are made of special heat-resistant ceramic powder with binder, molded and low-temperature sintered. Each strip is composed of segmented small ceramic blocks with red alignment line, packed with aluminum kraft paper backing.

It is an essential consumable for one-side welding with back formation process. When attached to the back side of weld joint, the ceramic pad holds the molten metal pool and shapes a uniform back weld bead automatically. This product completely eliminates back chipping, carbon gouging and back-side grinding, greatly cutting construction time and improving welding efficiency. We provide standard sizes and accept custom groove shapes and dimensions, widely adopted in industrial on-site welding projects.

2、Feature

One-side welding, both-side formation effect

Thermally stable inert ceramic

Red alignment marking line

Segmented block design

Self-adhesive aluminum kraft backing

3、Application

On-site one-side welding for ship hull, deck and bulkhead structures

One-side welding process for steel bridges, box columns and H-beam assemblies

Longitudinal and circumferential seam welding for pressure vessels and storage tanks

Assembly welding for large structural parts of construction machinery and lifting equipment

Installation welding for railway vehicles, containers and steel pipelines

4.Functions and properties

Segmented ceramic blocks connected in strip, with red alignment line, self-adhesive aluminum backing

Backing pad to realize one-side welding with back bead formation

V-groove; U-groove, circular groove available upon request

Easy to cut into segments, strong adhesion, good thermal shock resistance
